London Gatwick (EGKK) | Quick Reference¶

General¶

LVP

Enforced when: IRVR or Met. Visibility is 600 m or less or cloud ceiling (BKN+) 200 ft or less.

Safeguarding when: IRVR is 1000 m and forecast to drop into LVP or cloud ceiling is 300 ft and forecast to drop.

Aircraft will use the CAT III holding points.

26L: A3, C3, M3, Y2
08R: J3, H3, G3 (J4 & J7 remain available)

Common Reroutes

Warning

Controllers are reminded that it is their responsibility alone to ensure that the issued reroute beyond the initial segment provided below is valid.

These reroutes should, ideally, be issued over voice without need for prior pilot acceptance.

26L/R08R/L

Filed Route	New route	Reroute phraseology
ODVIK Y311 DVR ...	MIMFO DVR ...	"MIMFO 1M, then direct DVR"
IMVUR N63 SAM ...	NOVMA SAM ...	"NOVMA 1X, then direct SAM"
IMVUR N63 VOUGA N14 ...	NOVMA NIBDA N14 ...	"NOVMA 1X, then direct NIBDA, join N14"
SFD Y47 ...	BOGNA BENBO ...	"BOGNA 1X, then direct BENBO"
SFD M605 ...	HARDY M605 ...	"HARDY 1X, join M605"

Filed Route	New route	Reroute phraseology
MIMFO Y312 DVR ...	ODVIK DVR ...	"ODVIK 2Z, then direct DVR"
NOVMA L620 SAM ...	IMVUR SAM ...	"IMVUR 1Z, then direct SAM"
NOVMA L620 NIBDA N14 ...	IMVUR VOUGA N14 ...	"IMVUR 1Z, then direct VOUGA"
BOGNA ...	SFD BENBO ...	"SFD 4Z, then direct BENBO"
HARDY ...	SFD HARDY ...	"SFD 4Z, then direct HARDY"

GMC/GMP¶

Departure Prenotes

Departure	GMP Coord.	STUP Prenote
Non-SID IFR/SVFR	FIN
To Thames Group	TC SE	FIN
To LL/WU	TC SE	FIN
To Essex Group	TC SE
To LF/HI/HH	TC SW

Clearances to Heathrow (EGLL) & Northolt (EGWU)

26L/R08R/L

Radiotelephony

[Callsign], cleared to [Dest] via Biggin, after departure runway 26L/R climb straight ahead to I-WW 2.3 DME, then turn right heading 075, climb to altitude 4000 ft, speed 220 knots or less, squawk [Code].

Radiotelephony

[Callsign], cleared to [Dest] via Biggin, after departure runway 08R/L climb straight ahead to I-GG 5 DME, then turn right heading 090 degrees, climb to altitude 6000 ft, squawk [Code].

Flights to Local Airfields

Thames Group (Not Southend)SouthendHeathrow / NortholtEssex GroupFarnboroughSouthampton / Bournemouth

Routing: DET DCT GODLU DCT ELMIV DCT RAVSA

RFL: At least MSL

Departure: FRANE (CLN for non-RNAV) departure, terminating at DET at altitude 4000 ft.

Radiotelephony

BAW123 cleared to London City, FRANE 1M departure terminating at DET then route direct GODLU, maintain altitude 4000 ft, squawk [code]

Prenote: FIN

Delay Absorption: TC SE

Routing: DET

RFL: At least MSL

Departure: FRANE (CLN for non-RNAV) departure, terminating at DET at altitude 4000 ft.

Radiotelephony

BAW123 cleared to Southend, FRANE 1M departure terminating at DET, maintain altitude 4000 ft, squawk [code]

Prenote: FIN

Delay Absorption: TC SE

Routing: BIG

RFL: At least MSL

Departure / Phraseology: See Flights to Heathrow (EGLL) & Northolt (EGWU) above.

Prenote: FIN

Delay Absorption: TC SE

Routing: DET

RFL: At least MSL

Departure: FRANE departure, terminating at DET.

Radiotelephony

BAW123 cleared to Stansted, FRANE 1M departure terminating at DET, squawk [code]

Delay Absorption: TC SE

Routing: [IMVUR/NOVMA] DCT EVATA or SAM DCT RUDMO

Delay Absorption: TC SW

Routing: IMVUR N63 SAM or NOVMA L620 SAM or SAM

Delay Absorption: TC SW

Holding Points

26L/R08R/L

FRANE / MIMFO / LAM	BOGNA / HARDY / NOVMA / SFD	EGLL/EGWU
A3	A2	A3

FRANE / ODVIK / LAM	KENET / IMVUR / SFD	EGLL/EGWU
J4	J7	J4

Split GMC Operations

Westerlies (26)Easterlies (08)

Split GMC Areas of Responsibility – Westerly Operations

Split GMC Areas of Responsibility – Easterly Operations — Split GMC Areas of Responsibility

Level Capping (Not exhaustive)

Destination	Max RFL
EGNX/BB/GD/FF/SY	180
EGCC/GP/NR	260
EGNH/NJ/NM/NO	240
EGNT/NV	340
EHAM	290
EHRD	210
Other EH**	230
EBBR/AW/CI/CV/MB	230
LFPG/PB/PT/OB/OP	250
LFRR FIR	290
LFBB FIR	350
LSZH/MD (via France)	290

EGJJ/JB/JA are max 295, except max 180 via ORTAC/NEVIL.

Even levels only 120-200 | Odd level 210+

SIDs

26L/R08R/L

SID	Airborne QSY	Initial Climb	Notes
BOGNA 1X (1M)	TC SW (133.180)	5000ft	UK time: 0600-2300. Alternative: SFD
FRANE 1M	TC SE (120.530)	4000ft	Relief: DAGGA
HARDY 1X	TC SW (133.180)	5000ft	UK time: 0600-2300. Alternative: SFD
LAM 6M	TC SE (120.530)	4000ft	Relief: TIGER.
MIMFO 1M	TC SE (120.530)	4000ft	Relief: WIZAD
NOVMA 1X (1M)	TC SW (133.180)	4000ft
SFD 1X (5M)	TC SW (133.180)	4000ft	UK time: 2300-0600 Alt: HARDY for (U)M605, or BOGNA

() = non-RNAV

SIDs	Airborne QSY	Initial Climb	Notes
FRANE 1Z (CLN 5P)	TC SE (120.530)	5000ft
IMVUR 1Z (SAM 3P)	TC SW (133.180)	3000ft
(KENET 3P)	TC SW (133.180)	3000ft	RNAV 1 via NOVMA 1X or IMVUR 1Z
LAM 1Z (5P)	TC SE (120.530)	5000ft
ODVIK 2Z (DVR 2P)	TC SE (120.530)	6000ft
SFD 4Z (9P)	FIN (118.950)	6000ft

() = non-RNAV

Top-Down Order

Coordination Name	Position Logon	Controller Identifier	Frequency
AIR	EGKK_TWR	KKT	124.230
INT	EGKK_APP	KKR	126.825
TC South West	LTC_SW_CTR	TCSW	133.180
TC South	LTC_S_CTR	TCS	134.125
TC Bandbox	LTC_CTR	TC	135.805
AC Worthing	LON_H_CTR	LH	134.440
AC South	LON_S_CTR	LS	129.430
AC South Central	LON_SC_CTR	LSC	132.605
AC Bandbox	LON_CTR	L	127.830

AIR¶

Departure Pre-Notes/Releases

Departure	GMP Coord.	STUP Pre-Note	Prior Approval (AIR)	Release (AIR)
Relief SID			TC SE & FIN	FIN
Non-SID IFR/SVFR	FIN			FIN
SID following above				FIN
After RWY change				FIN
To LL/WU/LC/MC/KB	TC SE	FIN		TC SE & FIN
To Essex Group	TC SE			TC SE
To LF/HI/HH	TC SW			TC SW

Handoff / Release Orders

ID	Freq.
FIN	118.950
INT	126.825
TCSE	120.530
TCSW	133.180
TCS	134.125
TC	135.805
LD	134.905
LH	134.440
LS	129.430
LSC	132.600
L	127.830
LL INT S	134.980
LL INT N	119.730

East
TC SE (120.530)

West
TC SW (133.180)

SFD 08R
FIN (118.950)

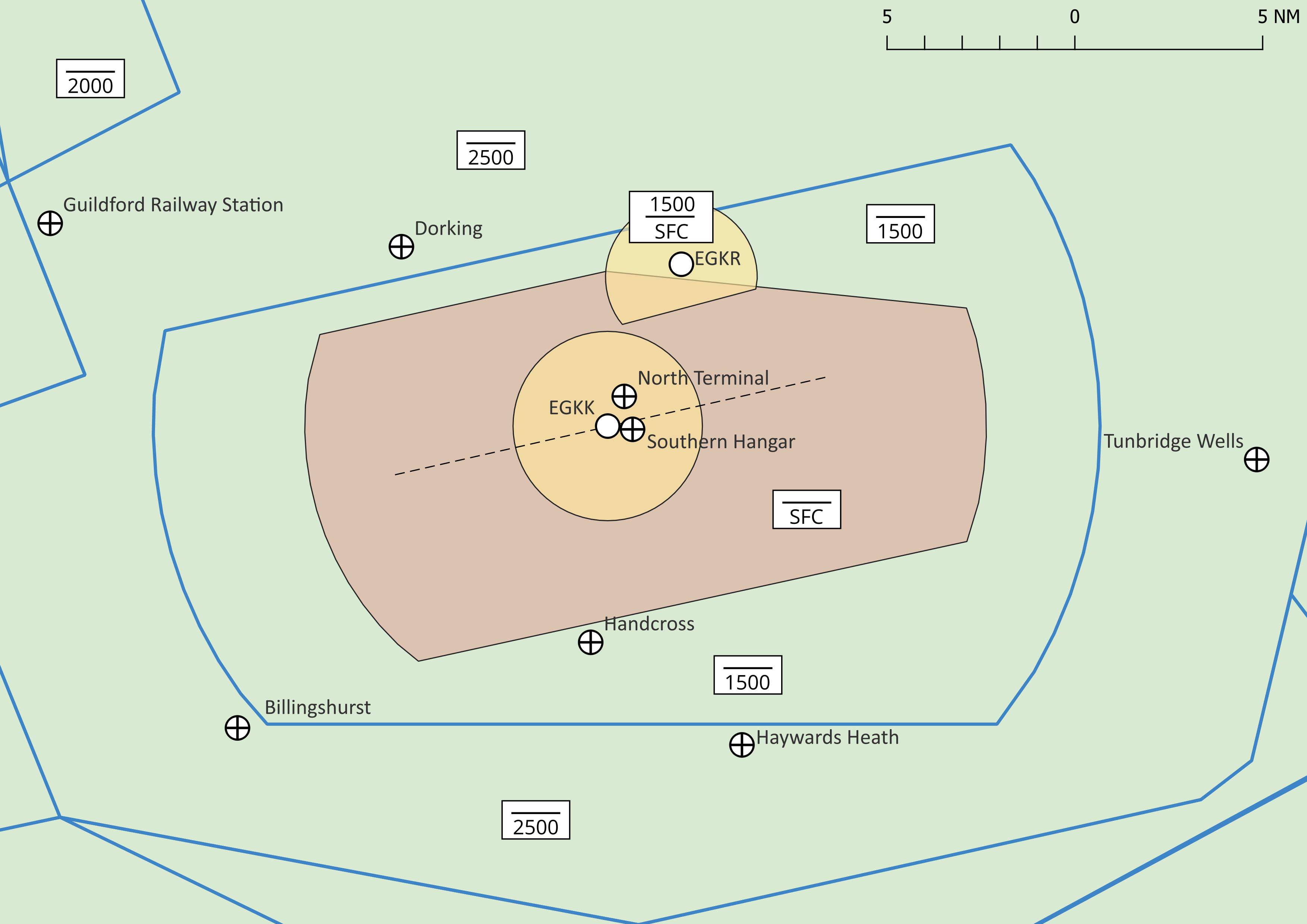

Local Airspace

RECAT-EU Wake Turbulence Separation (Seconds)

Lead→ ↓Follow	J	H	U	M	S	L
H	100	-	-	-	-	-
U	120	-	-	-	-	-
M	140	100	80	-	-	-
S	160	120	100	-	-	-
L	180	140	120	120	100	80

Note

Add 60 seconds for a departure from an intersection following one from full length.

Route Separation

26L/R08R/L

Lead→ ↓Follow	East (MIMFO, FRANE, LAM) TC SE (120.530)	West (NOVMA, BOGNA, HARDY) TC SW (133.180)	SFD TC SW (133.180)	Relief FIN (118.950)
East (MIMFO, FRANE, LAM) TC SE (120.530)	2	1	1	1*
West (NOVMA, BOGNA, HARDY) TC SW (133.180)	1	2	2	1
SFD TC SW (133.180)	1	2	2	2
Relief FIN (118.950)	1	1	2	2

Note

* WIZAD then MIMFO = 3 minutes

Lead→ ↓Follow	LAM TC SE (120.530)	East (FRANE, ODVIK) TC SE (120.530)	West (KENET, IMVUR) TC SW (133.180)	SFD FIN (118.950)
LAM TC SE (120.530)	2	2	2	1
East (FRANE, ODVIK) TC SE (120.530)	2	2	1	1
West (KENET, IMVUR) TC SW (133.180)	2	1	2	1
SFD FIN (118.950)	1	1	1	2

Speed Separation Groups

Group 4	Group 3	Group 2	Group 1
All jet aircraft except: - Those in Group 3 - Concorde - Military fast jets	BAE146/Avro RJ CL35/CL60 CRJ1/2/7/9/X B328/J328 DH8D E135/145 E50P/55P P180 SB20 Citations except: C56X/680/68A/700/750	ATR variants DH8A/B/C F50 JS31/32/41 King Air variants PC12 SF34 SW3/4 TBM7/8/9	BN2P/T C208 DA62 DHC6 E110

Speed Separation Notes

The basic separation interval (2 minutes) is applied between types in the same group (or where the following aircraft is one group slower)
An additional 1 minute is added for each successive group when the following aircraft is faster (where the resulting timed interval is excessive, the controller may coordinate an early release)
The basic interval may be reduced by 1 minute when the following aircraft is two or more groups slower (however, the controller must account for wake turbulence separation)
Types not in the speed table (and the subsequent aircraft) are subject to release from the appropriate radar controller.

VFR Procedures

Standard circuit clearance (not mandatory but advised):

Runway	Direction	Altitude
26L	Left hand	1500 ft
08R	Right hand	1500 ft

All VFR zone exit clearances shall be coordinated with FIN by GMP.

APC¶

Hold Details

Name	Axis	Direction	Holding Levels	Leg Time / Length	Speed
WILLO	283°	LEFT hand	MSL - FL150	5.1 NM	Max 220 kts IAS
TIMBA	308°	RIGHT hand	MSL - FL150	1 minute	Max 220 kts IAS
MAY	087°	LEFT hand	3000 ft - 6000 ft	1 minute	Max 220 kts IAS

RECAT-EU Wake Turbulence Arrival Separation (NM)

Lead→ ↓Follow	J	H	U	M	S	L
J	3	-	-	-	-	-
H	4	3	-	-	-	-
U	5	4	3	-	-	-
M	5	4	3	-	-	-
S	6	5	4	-	-	-
L	8	7	6	5	4	3

RMA

26L/R08R/L

RNP Approaches

RWY	IF	FAF
26L	OLEVI	K26LF
08R	ABIBI	K08RF
26R	ARPIT	K26RF
08L	MEBIG	K08LF

Squawks

APC	AIR	Listening
`3750-3761`	`3764-3766`	`7012`

Transition Level & MSL

EGLL QNH	TL	MSL
1032-1049	65	70
1013-1031	70	70
995-1012	75	80
977-994	80	80
959-976	85	90
940-958	90	90
